Lifting Hardware

Cargo Hook

Designed for reliable lifting operations, this stainless steel eye sling hook is manufactured from high-quality Grade 5 material, ensuring excellent strength, corrosion resistance, and durability. Ideal for marine, offshore, and general lifting applications where resistance to harsh environments is essential.

Quick specifications

2 - 31.5T

load limit

4:1 / 5:1

Safety Factor

EN 818-2

standard

Multi Size

Available

Heavy Duty

Construction

Industrial Use

Application

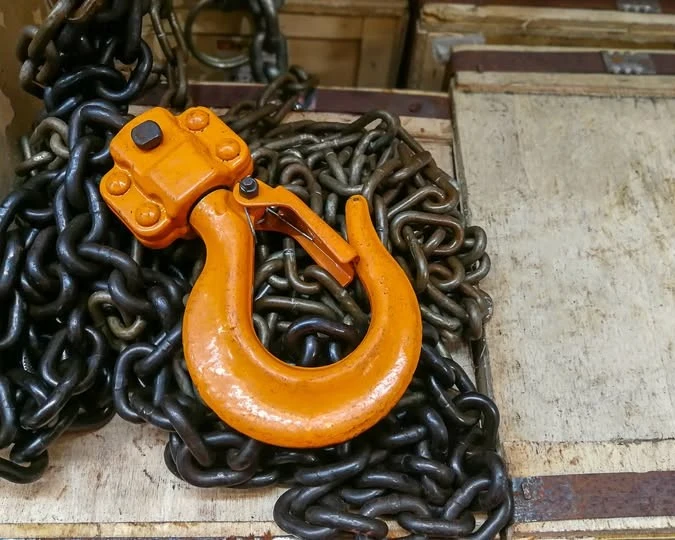

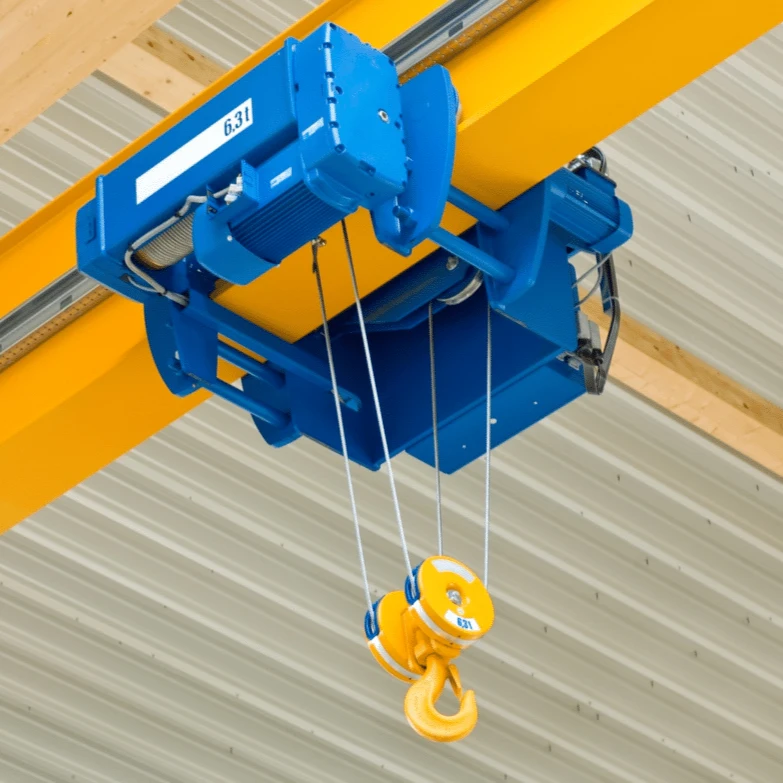

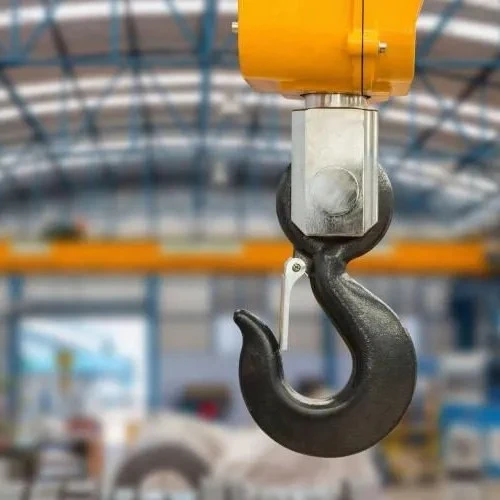

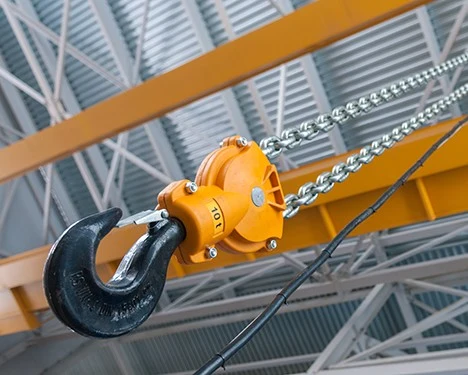

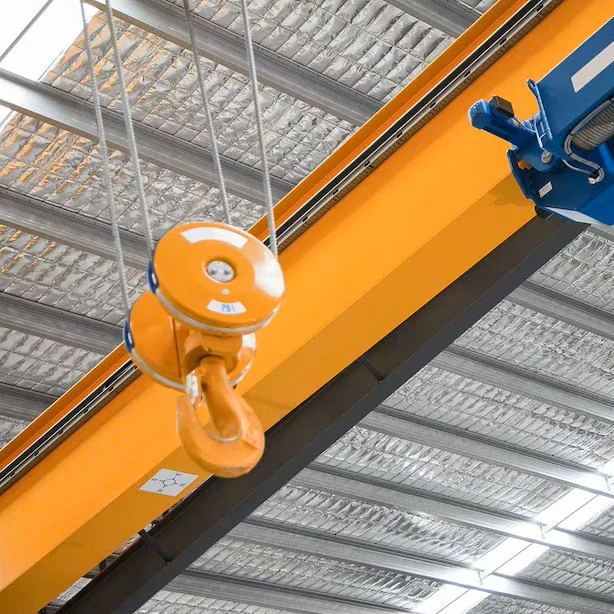

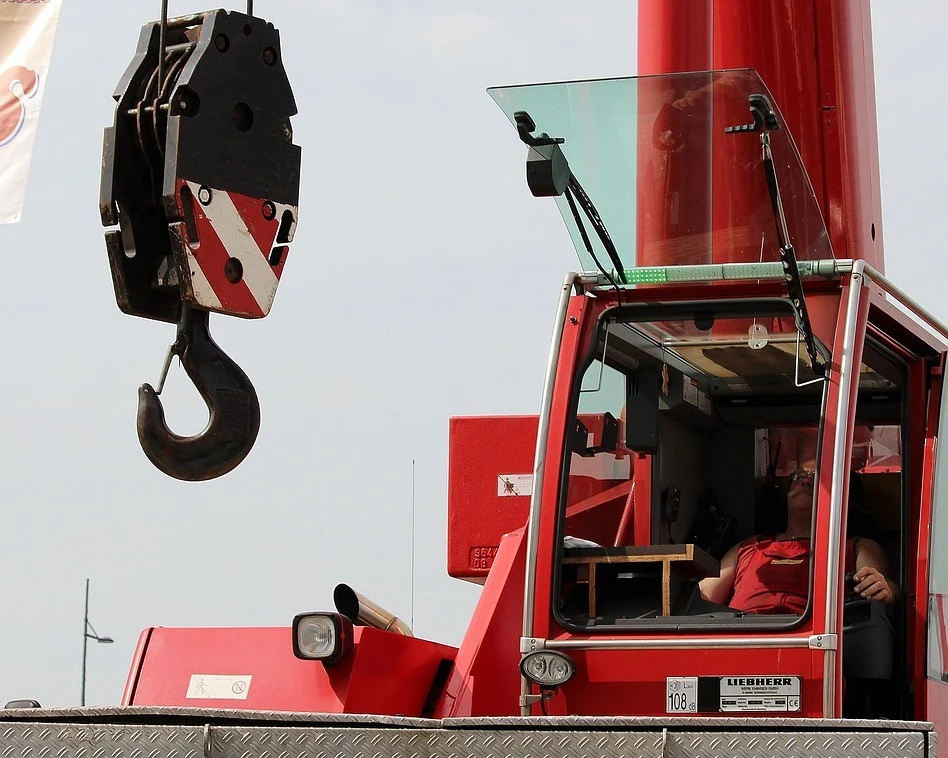

Cargo Hook in use:

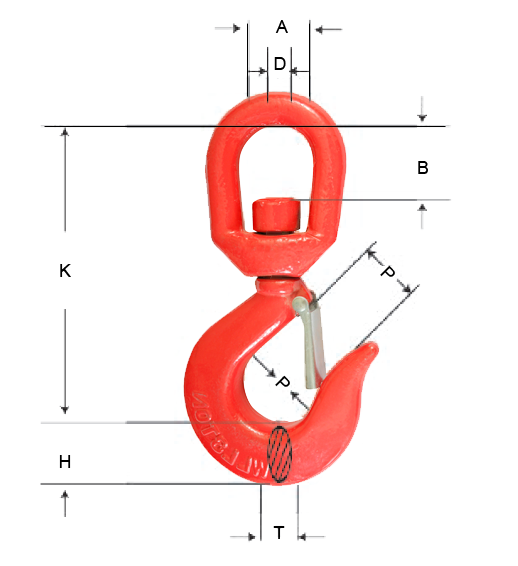

Working load limit table

FOR CHAIN DIAMETER		WORKING LOAD LIMIT	LENGTH INSIDE EYE		DIAMETER OPENING	WIDTH	THICKNESS	WIDTH	DIAMETER EYE OUTSIDE	WIDTH OUTSIDE	LENGTH	WIDTH	THICKNESS	WEIGHT EACH
mm	inch	t	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	i mm	j mm	mm	kg
6	7/32	0.7	84	23	26	15	20	43	72	114	10	6	—	0.28
7–8	1/4–5/16	1.2	103	26	30	20	24	51	87	139	12	8	—	0.56
10	3/8	1.6	128	35	33	24	29	65	106	172	15	10	—	1.09
13	1/2	2.7	152	41	37	32	39	77	133	209	18	12	—	1.98
