Fall Protection
Safety Net
High tenacity knotless polypropylene safety nets for fall protection across construction, oil & gas, shipping and heavy industry UAE, Middle East & Africa.
Quick specifications
12 x 50m
Dimensions
25 x 25mm
Mesh size
1000N
Mesh tensile strength
5.0 kJ
Energy absorption
30 kN
Edged rope strength
-40°C to +80°C
Operating temp

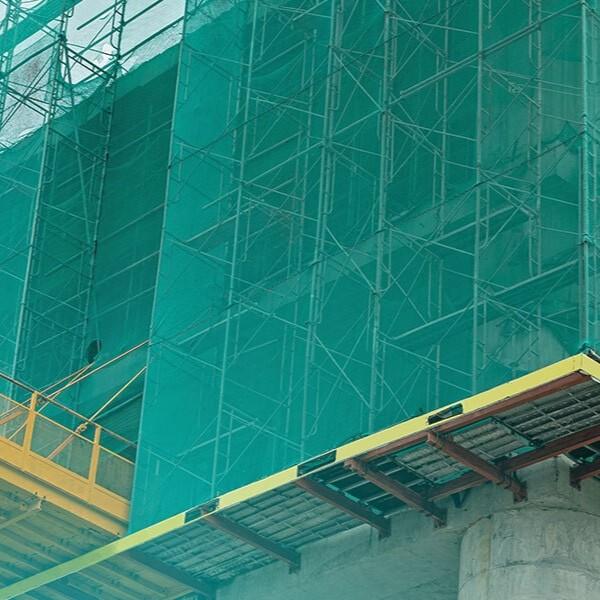

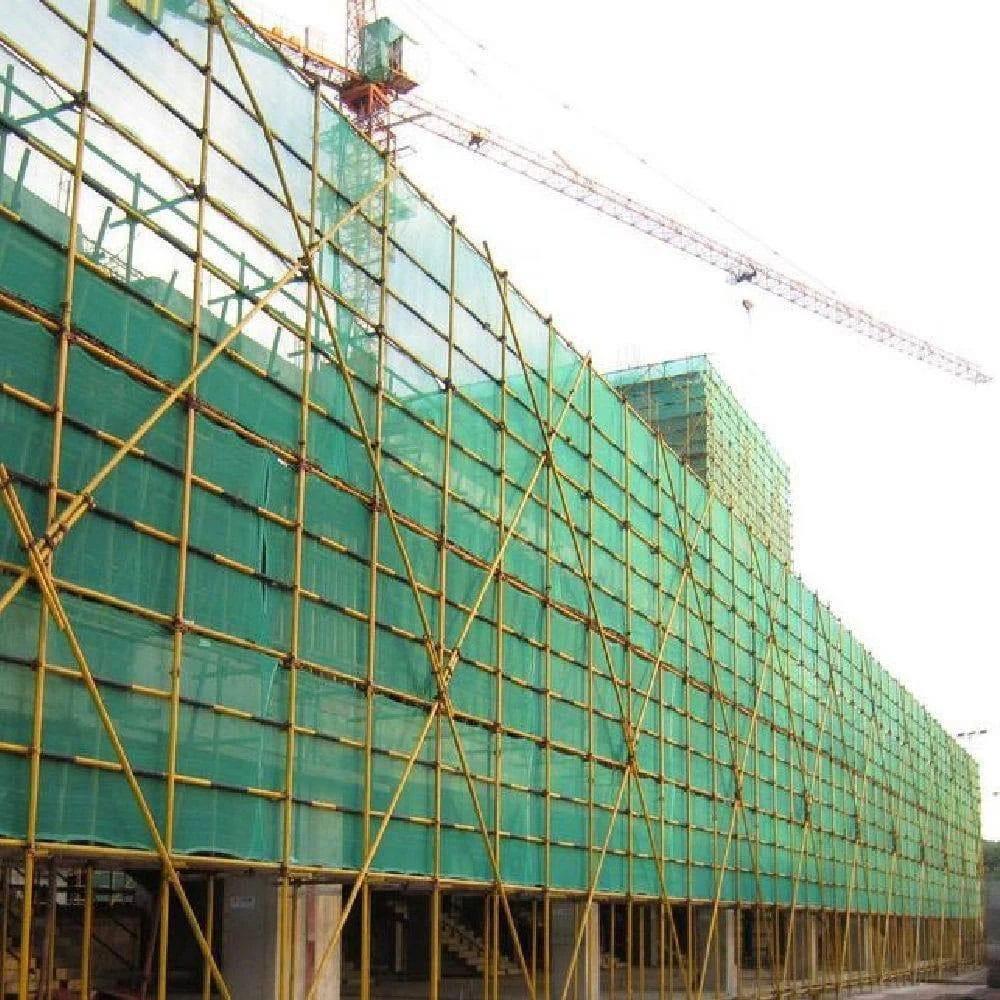

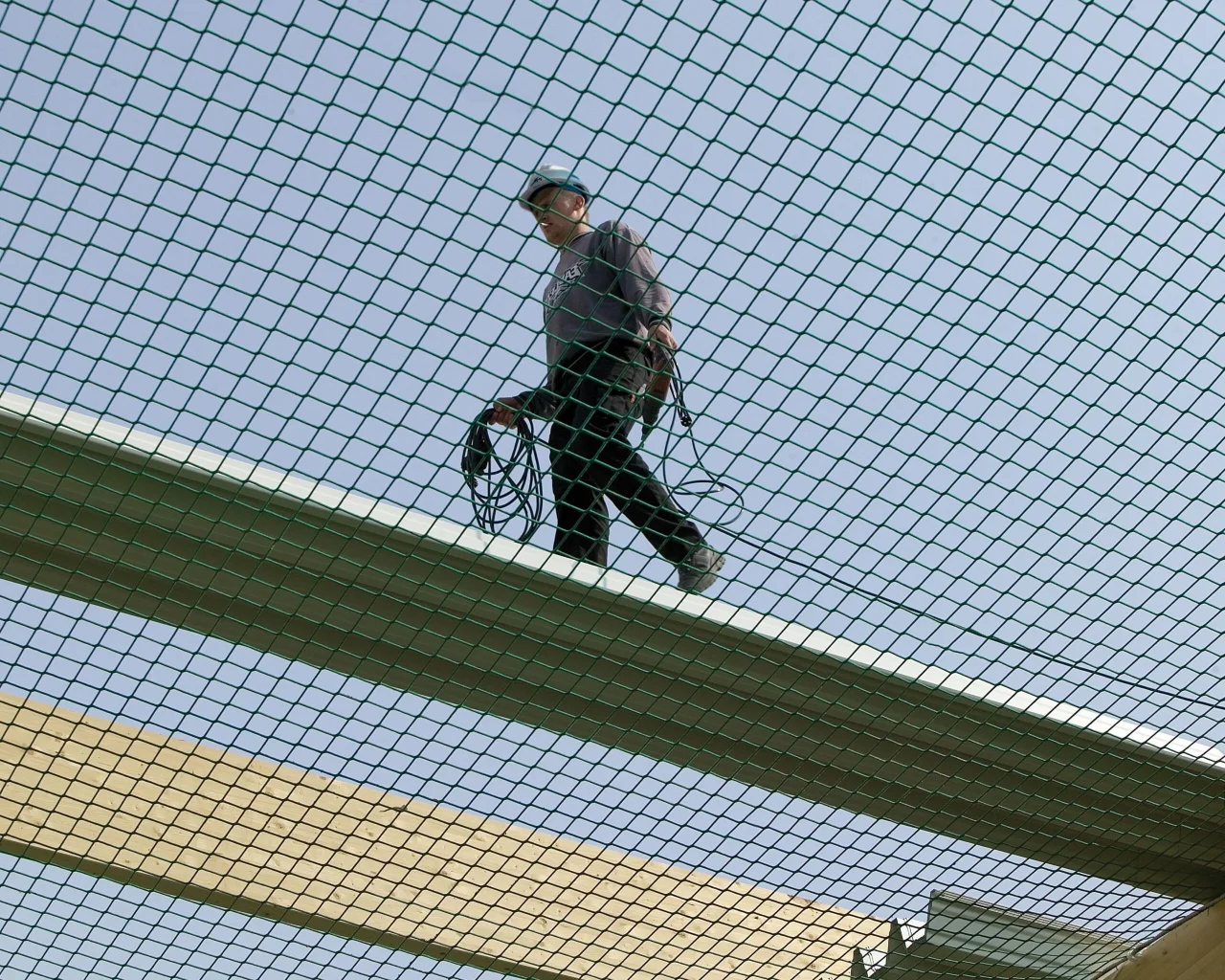

Safety Net in use:
| TECHNICAL DATA | DETAILS |
|---|---|
| Available Colors | Green |
| Dimensions | 12 x 50 m |
| Material | High tenacity polypropylene, knotless |
| Material Diameter | 3 mm |
| Mesh Size | 25 x 25 mm |
| Pose of Meshs | Rhombic (diamond mesh) |
| Mesh Connection | Knotless braid |
| Edge Design | With edged rope |
| Edged Rope | Polypropylene rope (Ø 10 mm, white), all around |
| Max. Tensile Strength of a Mesh | 1000 N |
| Energy Absorption (approx.) | 5.0 kJ |
| Tensile Strength of Edged Rope | 30 kN |
| Densile Breaking Force Referred to Density | 7.0 cN/den |
| Breaking Elongation of Filament | 15% |
| Standards and Rules | BG regulation no. 179, DGUV standard 101-011, EN 1263-1 |
| Net Class | A2 |
| Safety Net System | S (rope-edge safety net) |
| Regular Inspection Interval | 12 months |
| Number of Test Meshes | 3 pcs. |
| Continuous Operating Temperature | -40 to +80 °C |
| Melting Point | 165 °C |
| Washing Temperature (max.) | 30 °C |
