Shackles
Forged and cast alloy steel wide body shackles, quenched & tempered for safe, reliable lifting across construction, oil & gas, shipping and heavy industry UAE, Middle East & Africa.
Quick specifications
7–1550T
Working load limit
5:1 / 4.5:1
Design factor
2× WLL
Proof Load Tested
100% MPI
Crack detection
Forged / Cast
Alloy steel construction
DNV Approved
Certification

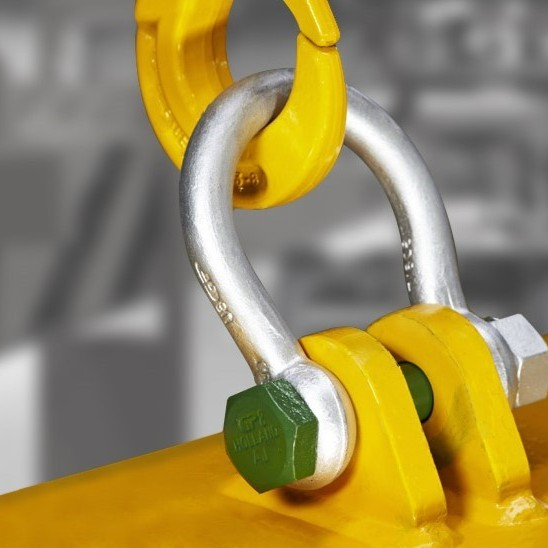

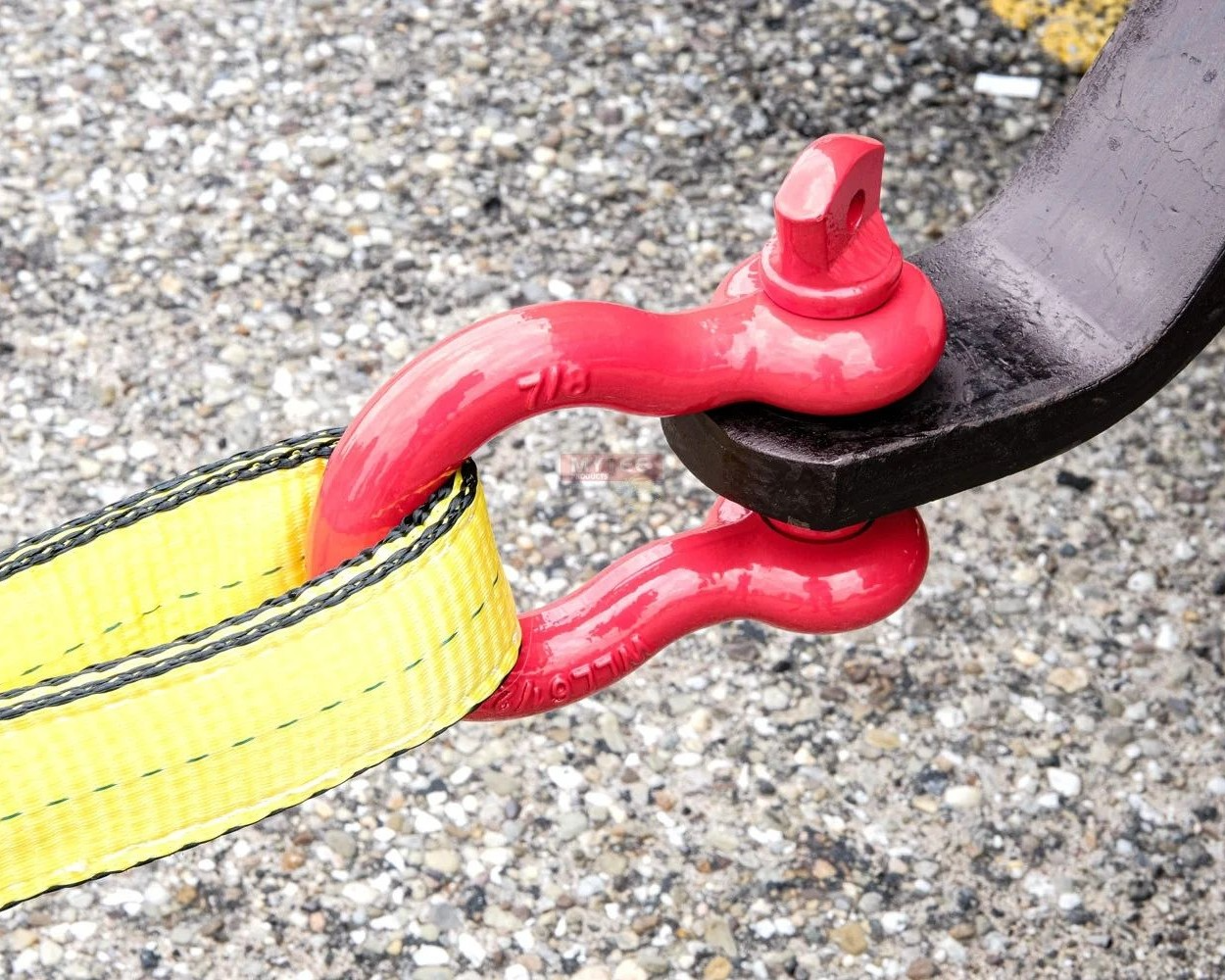

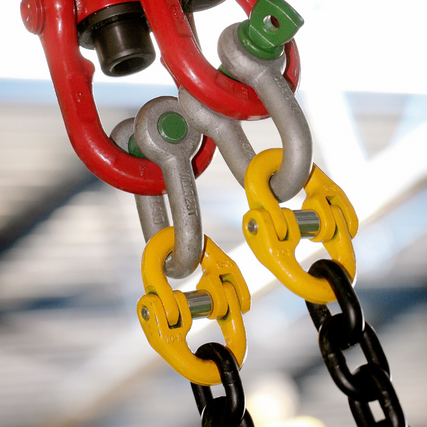

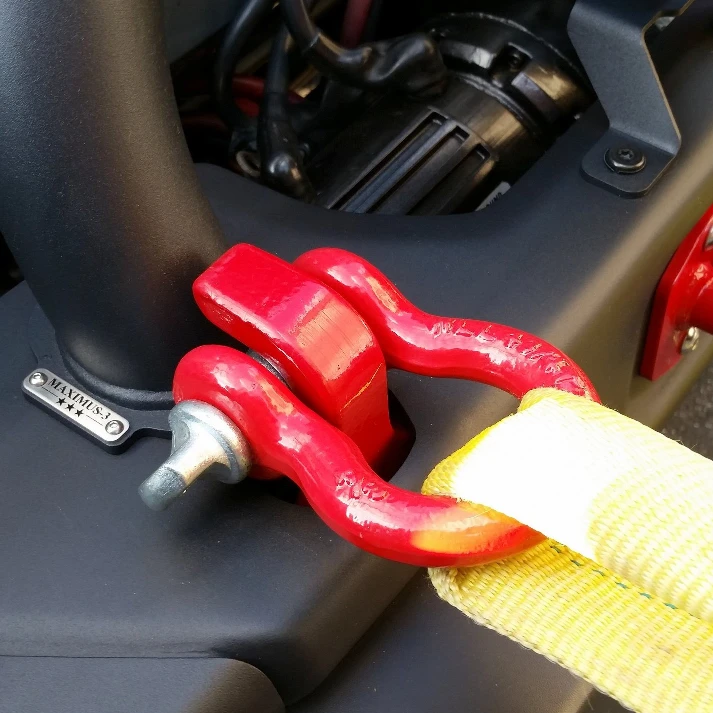

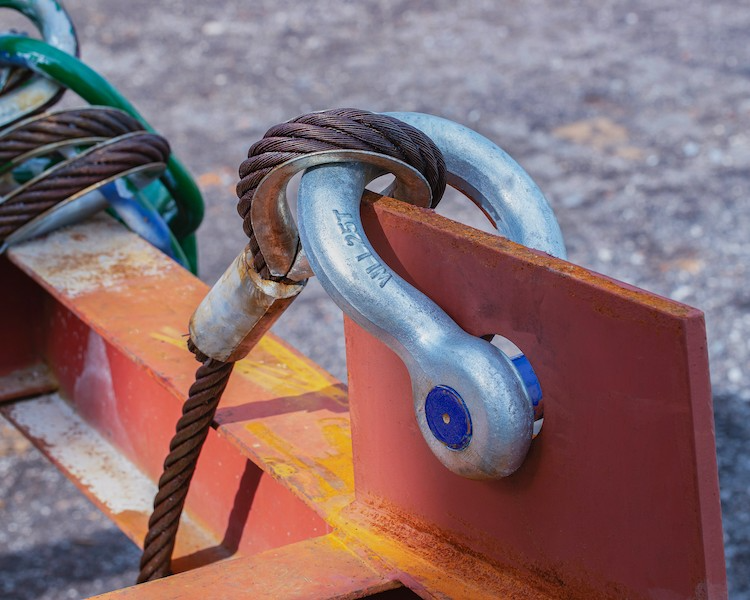

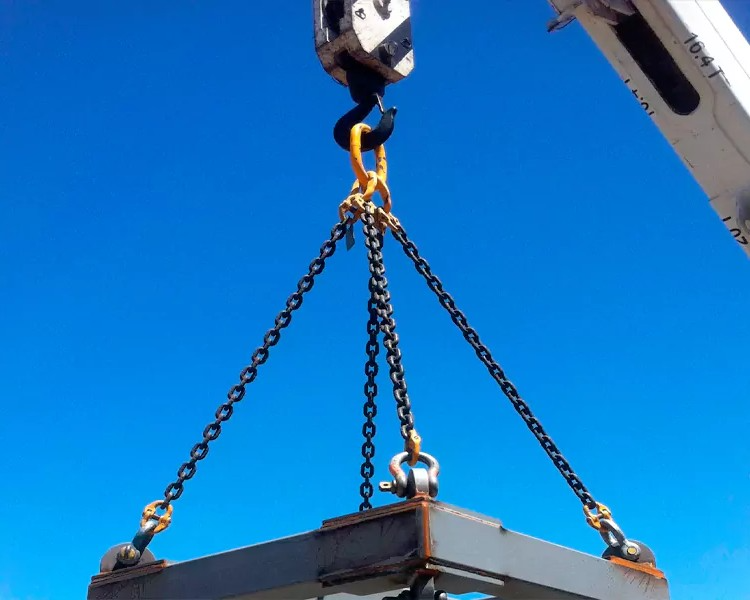

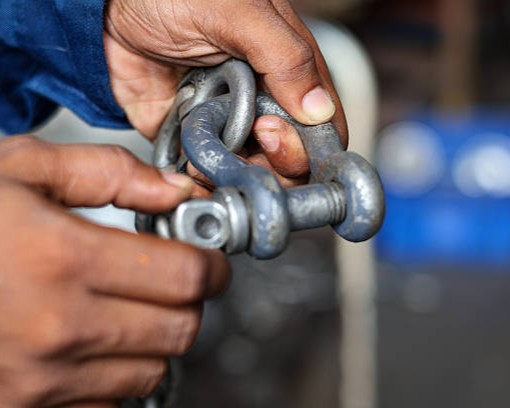

Shackles in use:
Working load limit table
| DIMENSIONS & WLL | PIN STYLES & PRODUCT NUMBERS | NOMINAL WEIGHT (G) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| WLL (T) | P (MM) | B (MM) | J (MM) | L (MM) | A TYPE | AL TYPE | B TYPE | E TYPE | E TYPE C/W NYLOK | |
| 1.0 | 10.0 | 8.0 | 16.0 | 32.0 | PH1TA | PH1TAL | PH1TB | PH1TE | PH1TE-NY | 85 |
| 2.0 | 12.7 | 10.0 | 20.0 | 40.0 | PH2TA | PH2TAL | PH2TB | PH2TE | PH2TE-NY | 150 |
| 3.0 | 16.0 | 12.7 | 25.0 | 50.0 | PH3TA | PH3TAL | PH3TB | PH3TE | PH3TE-NY | 350 |
| 5.0 | 19.0 | 16.0 | 32.0 | 64.0 | PH5TA | PH5TAL | PH5TB | PH5TE | PH5TE-NY | 550 |
| 7.0 | 22.2 | 19.0 | 38.0 | 76.0 | PH7TA | PH7TAL | PH7TB | PH7TE | PH7TE-NY | 1000 |
| 9.0 | 25.4 | 22.2 | 44.0 | 88.0 | PH9TA | PH9TAL | PH9TB | PH9TE | PH9TE-NY | 1900 |
| 11.0 | 28.6 | 25.4 | 51.0 | 102.0 | PH11TA | PH11TAL | PH11TB | PH11TE | PH11TE-NY | 2900 |
| 13.0 | 31.8 | 28.6 | 57.0 | 114.0 | PH13TA | PH13TAL | PH13TB | PH13TE | PH13TE-NY | 3100 |
| 15.0 | 34.9 | 31.8 | 64.0 | 128.0 | PH15TA | PH15TAL | PH15TB | PH15TE | PH15TE-NY | 4350 |
| 18.0 | 38.0 | 34.9 | 76.0 | 152.0 | PH18TA | PH18TAL | PH18TB | PH18TE | PH18TE-NY | 5300 |
