Industrial Polyester Sling

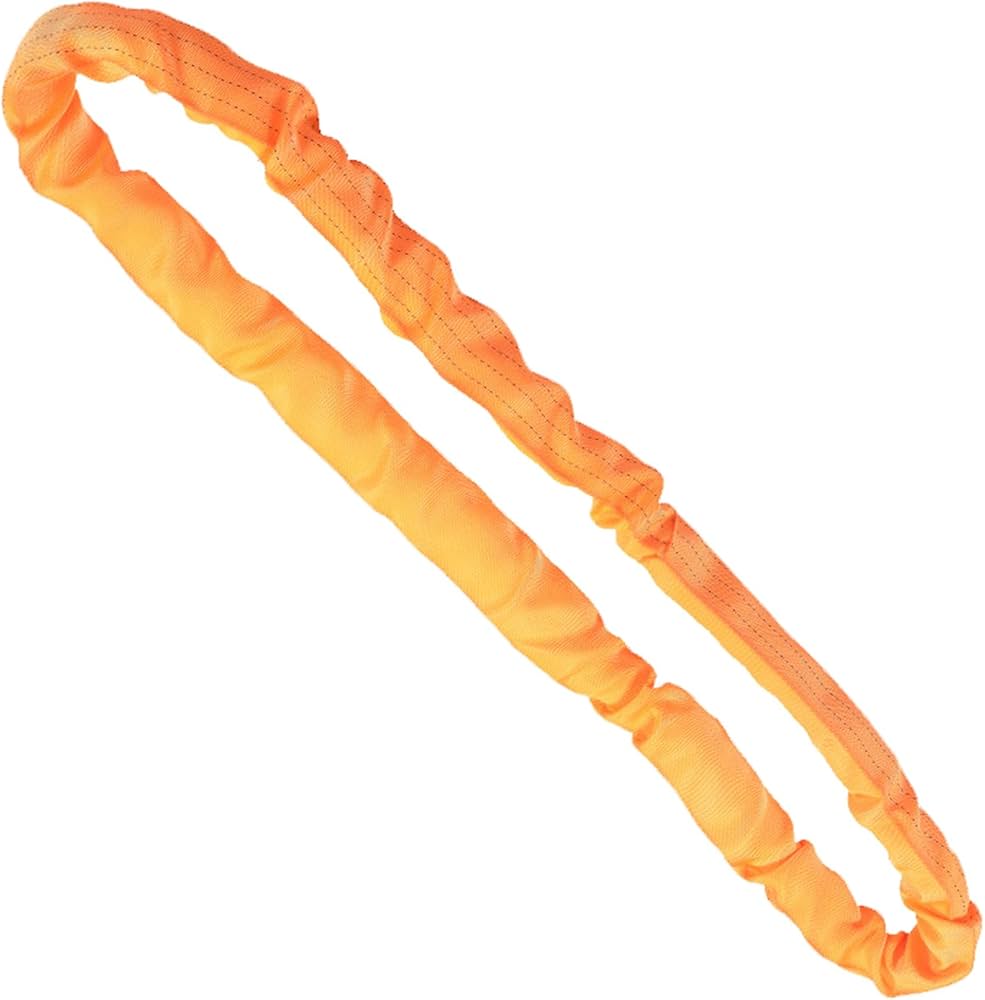

Polyester Round Sling
High-strength polyester round slings designed for safe and efficient lifting. Made from 100% polyester with a soft, flexible construction, they provide excellent load protection and durability. Suitable for various lifting configurations with optional protective sleeves and eye types.
Quick specifications
45-220mm
Width range
0.5 - 250T
Straight lift WLL
1 - 500T
Basket lift WLL
7:1
Safety factor (fibre)
4:1
With steel end fittings
EN 1492-2
Testing standard

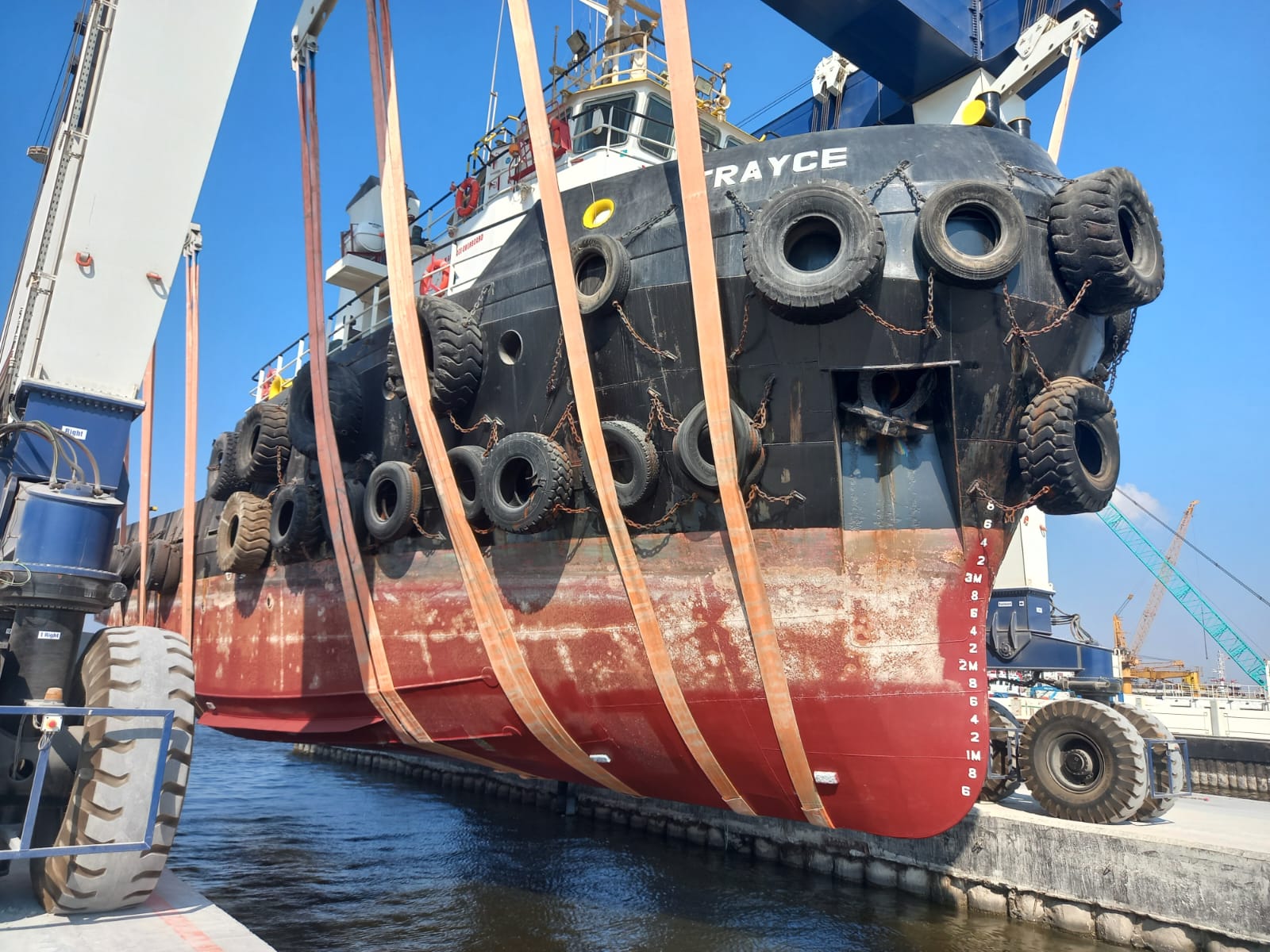

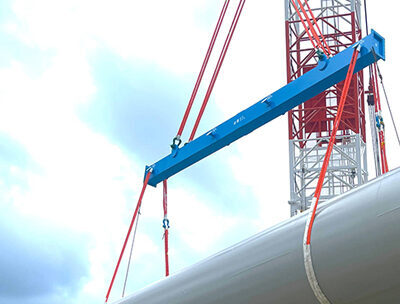

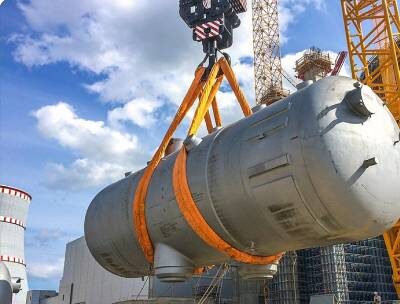

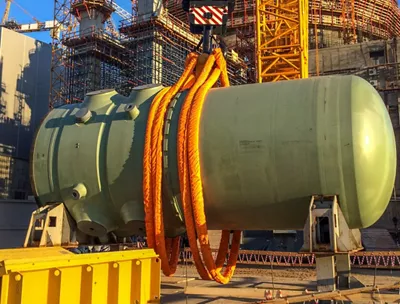

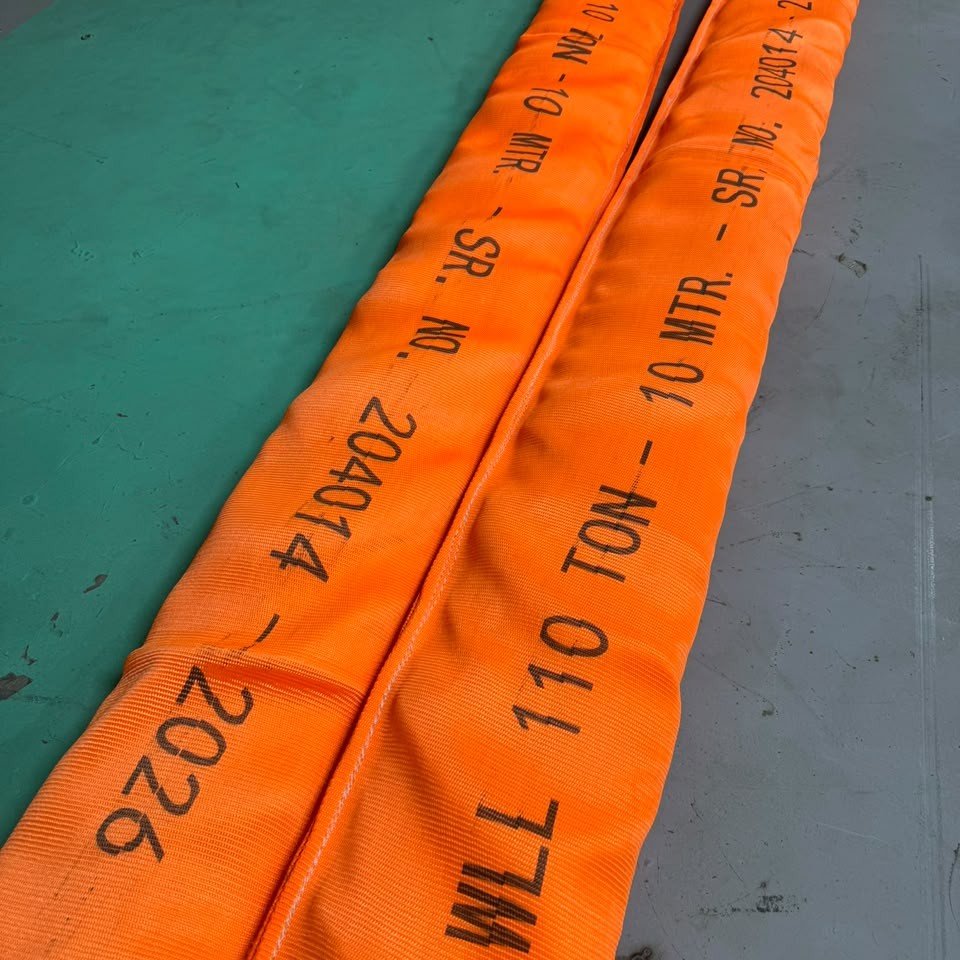

Round Slings in use:
Working load limit table
| ART.NO. | W.L.L (KG) | Color code | Width (mm) | WLL in kg at different modes | ||||
|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
||||
| Straight Lift | Basket Lift | 7° - 45° | Choker Hitch | 45° - 60° | ||||
| TP-RS-01 | 1000 |
Violet
|
45 | 1000 | 2000 | 1400 | 800 | 1000 |
| TP-RS-02 | 2000 |
Green
|
50 | 2000 | 4000 | 2800 | 1600 | 2000 |
| TP-RS-03 | 3000 |
Yellow
|
60 | 3000 | 6000 | 4200 | 2400 | 3000 |
| TP-RS-04 | 4000 |
Grey
|
75 | 4000 | 8000 | 5600 | 3200 | 4000 |
| TP-RS-05 | 5000 |
Red
|
85 | 5000 | 10000 | 7000 | 4000 | 5000 |
| TP-RS-06 | 6000 |
Brown
|
90 | 6000 | 12000 | 8400 | 4800 | 6000 |
| TP-RS-08 | 8000 |
Blue
|
105 | 8000 | 16000 | 11200 | 6400 | 8000 |
| TP-RS-10 | 10000 |
Orange
|
115 | 10000 | 20000 | 14000 | 8000 | 10000 |
| TP-RS-12 | 12000 |
Orange
|
120 | 12000 | 24000 | 16800 | 9600 | 12000 |
| TP-RS-15 | 15000 |
Orange
|
130 | 15000 | 30000 | 21000 | 12000 | 15000 |
| TP-RS-20 | 20000 |
Orange
|
130 | 20000 | 40000 | 28000 | 16000 | 20000 |
| TP-RS-25 | 25000 |
Orange
|
175 | 25000 | 50000 | 35000 | 20000 | 25000 |
| TP-RS-30 | 30000 |
Orange
|
175 | 30000 | 60000 | 42000 | 24000 | 30000 |
| TP-RS-40 | 40000 |
Orange
|
220 | 40000 | 80000 | 56000 | 32000 | 40000 |
| TP-RS-50 | 50000 |
Orange
|
220 | 50000 | 100000 | 70000 | 40000 | 50000 |
